What are the structural features of the Pulse Valve?

Pulse valves are critical components in industrial dust collection systems, designed to release short, high-pressure bursts of air to clean filter bags. Their efficiency and reliability depend heavily on their structural design. Understanding the key features of a pulse valve helps in selecting the right product for specific operational requirements.

Key Structural Features

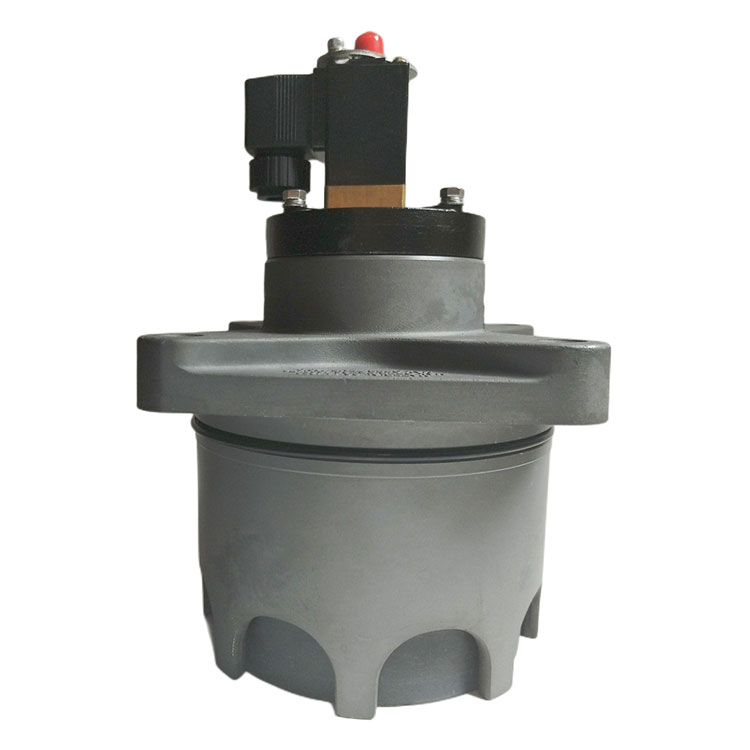

A typical pulse valve consists of the following components:

1. Valve Body: Usually constructed from durable materials like aluminum or stainless steel to withstand high pressure and corrosive environments.

2. Diaphragm: A flexible membrane that acts as the sealing element. It opens and closes rapidly to control the pulse of air.

3. Solenoid Coil: An electromagnetic component that receives the electrical signal to activate the valve.

4. Spring Mechanism: Works in conjunction with the diaphragm to ensure quick closure after each pulse, preventing continuous air bleed.

5. Inlet and Outlet Ports: Precision-engineered threads (e.g., NPT) for a secure and leak-free connection to the piping system.

6. Pilot Valve: A smaller valve that controls the airflow to the main diaphragm, enabling rapid operation with low power consumption.

This robust construction ensures the pulse valve performs millions of cycles with minimal maintenance, even in demanding conditions.

Technical Parameters at a Glance

The performance of a pulse valve is defined by its technical specifications. Below is a detailed breakdown of common parameters.

Why Structural Integrity Matters

The design and materials of a pulse valve directly impact the efficiency of the dust collection system. A well-built valve ensures:

• High Energy Efficiency: Precise operation minimizes compressed air consumption.

• Long Service Life: Corrosion-resistant materials and a robust diaphragm reduce wear.

• Reliable Performance: Consistent and rapid pulses prevent filter blinding, maintaining system suction power.

When selecting a pulse valve, always consider these structural features and parameters to ensure optimal compatibility with your system’s pressure, voltage, and environmental conditions. The right Pulse Valve is an investment in the productivity and longevity of your entire operation. For specialized applications, custom configurations of the Pulse Valve are often available to meet unique requirements.
