ASCO Pulse Valve
Product Advantages
As the key actuator of dust removal system, this series of ASCO pulse valves are designed with the core objectives of fast response, stable sealing and long service life, which can be perfectly adapted to domestic and international mainstream dust removal equipments and control units, helping you to reduce the maintenance cost and shorten the supply cycle. It can help you to reduce maintenance cost, shorten the supply cycle, and do not need to worry about the limitation of purchasing original spare parts.
Working Principle
The ASCO pulse valve receives the command from the control system through the electromagnetic coil, opens and closes the valve spool in milliseconds, and generates the pulse airflow by the instantaneous release of compressed air. In dust removal equipment, this airflow can efficiently strip the surface of the filter material of the accumulated ash, to ensure the filtration efficiency of the system.
Solenoid ASCO Pulse Valve
|
Model |
SCG353A043 |
SCG353A044 |
SCG353A047 |
SCG353A050 |
SCG353A051 |
SCXE353.060 |
|
Port Size |
3/4'' |
1'' | 1 1/2'' |
2'' |
2 1/2'' |
3'' |
|
Voltages |
24VDC, 24VAC, 110VAC, 220VAC |
|||||
|
Diaphragm Number |
1 |
2 |
||||
|
Working Pressure Range |
0.35 to 0.85 MPa |
|||||
|
Diaphragm Material |
TPE, NBR, FKM |
|||||
|
Fluids |
Air |
|||||
|
Valve Structure |
Right Angle, Threaded Port |
Full Immersion |
||||
Remote ASCO Pulse Valve
| Port Size | Pilot Size |
Orifice Size(mm) |
Kv |
Operating Pressure Differential (bar) |
Model Number |
|
|
(m³/h) |
(l/min) |
|
|
|||
|
Threaded pipe connection |
||||||
|
G3/4'‘’ |
G1/8'' |
24 | 14 | 233 |
0.35 to 8.5 |
G353A041 |
|
G1'' |
G1/8'' |
27 |
17 | 283 |
0.35 to 8.5 |
G353A042 |
|
G1-1/2'' |
G1/4'' |
52 |
46 |
768 |
0.35 to 8.5 |
G353A045 (Single Stage) |
|
G1-1/2'' |
G1/8'' |
50 |
46 |
768 |
0.35 to 8.5 |
G353A046 (Double Stage) |
|
G2'' |
G1/4'' |
66 |
77 |
1290 |
0.35 to 8.5 |
G3530A48 |
|
G2-1/2'' |
G1/4'' |
66 |
92 |
1540 |
0.35 to 8.5 |
G353A049 |
Products
- View as
G353A045 1.5 Inch Remote Air-Piloted Pulse Valve
The G353A045 is a remotely piloted diaphragm valve for dust collector cleaning. G1½ main ports carry the cleaning air, while a separate G¼ connection links the valve to an external pilot. The aluminum angle body contains a stainless steel spring.
View DetailsSend Inquiry

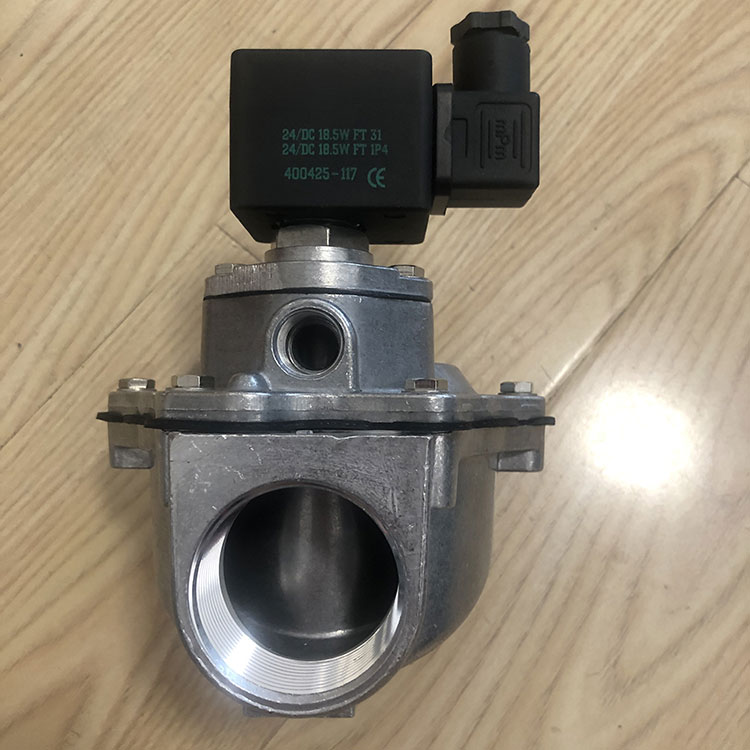

SCG353A047 Threaded Diaphragm Pulse Valve
With 1.5 inch threaded connections and a right-angle body, the SCG353A047 directs compressed air into baghouse cleaning pipework. An integral solenoid pilot controls the NBR diaphragm to start and stop each cleaning pulse.
View DetailsSend Inquiry
SCG353A047 1.5 Inch Dust Collector Pulse Valve
The SCG353A047 pulse valve releases compressed-air pulses for bag filter cleaning. This 1.5 inch model has an aluminum body, stainless steel core tube and NBR diaphragm. Share the required coil voltage and connection details for configuration checking.
View DetailsSend Inquiry
G353A045 Remote Pilot Solenoid Valve
G353A045 remote pilot solenoid valve (1-1/2" DN40), 2/2 NC, high flow Cv 53.18, 0-8 bar, for pulse jet dust collectors. Long life, reliable performance.
View DetailsSend Inquiry
SCG353A050 Pulse Jet Valve
SCG353A050 Pulse Jet Valve is 2 inch pulse valve, suitable for baghouse systems, can be used in high pollution industries, such as thermal power plants, cement plants, asphalt plants, and others.
View DetailsSend Inquiry
SCG353A044 Pulse Valve
The SCG353A044 Pulse Valve is perfect for dust collector systems, pneumatic controls and industrial filtration systems. It responds quickly and is very strong, which makes it perfect for industries like cement, power generation, chemical processing and food manufacturing. In these industries, it is very important to have dust removed and air that is clean and efficient.
View DetailsSend Inquiry
Welcome to Star Machine, where you can obtain top-notch ASCO Pulse Valve directly from our cutting-edge factory in China. As a prominent manufacturer and supplier of ASCO Pulse Valve, opt for Star Machine to experience a blend of exceptional quality, unmatched durability, and a steadfast commitment to customer satisfaction. Our products are readily available in stock for wholesale purchases, providing you cheap products.
