DMF Pulse Valve
DMF pulse valve is a high-performance control element designed for industrial dust removal system, adopting thickened aluminium alloy valve body and high-quality copper wire coil technology, combining durability, stability and economy. This series of products have a streamlined structure, suitable for a variety of complex working conditions, widely used in environmental protection, metallurgy, chemical industry, building materials and other industries in the dust control scene.
DMF valves use thickened aluminium alloy valve body, safe and durable, not easy to be damaged, long service life. DMF valves are simple in structure, easy to install, save labour cost. Our DMF pulse valve coil is made of quality copper wire with full turns winding, which can be used stably.
|
Inner
Type
|
Diameter
(mm)
|
Diameter
(inch)
|
Main
Diaphragm
(mm)
|
Outer Orifice Connection
(mm)
|
Blow Pipe Inner
Diameter
(mm)
|
Weight
(kg)
|
Kv/Cv |
| DMF-Z-20 | Φ20 | 3/4” | 80 | Φ27 | 20 | 0.65 | 17.55/20.48 |
| DMF-Z-25 | Φ25 | 1” | 96 | Φ34 | 25 | 0.8 | 26.16/30.53 |
| DMF-Z-40S | Φ40 | 1 1/2” | 111 | Φ48 | 40 | 1.4 | 45.85/53.47 |
| DMF-Z-50S | Φ50 | 2” | 160 | Φ60 | 50 | 2.4 | 61.24/71.47 |
| DMF-Z-62S | Φ62 | 21/2” | 188 | Φ75 | 62 | 3.5 | 129.26/150.85 |
| DMF-Z-76S | Φ76 | 3” | 200 | Φ89 | 76 | 4.3 | 159.95/186.66 |
| DMF-Z-89S | Φ89 | 3 1/2” | 227 | Φ102 | 89 | 5.9 | 202/230 |
| DMF-Z-102S | Φ102 | 3 1/2” | 255 | Φ114 | 102 | 7.3 | 260/303 |
| DMF-ZM-20 | Φ20 | 3/4” | 80 | Φ27 | 20 | 0.9 | 17.55/20.48 |
| DMF-ZM-25 | Φ25 | 1” | 96 | Φ34 | 25 | 1.3 | 26.16/30.53 |
| DMF-ZM-40S | Φ40 | 1 1/2” | 111 | Φ48 | 40 | 2 | 45.85/53.47 |
| DMF-ZF-20 | Φ20 | 3/4” | 80 | Φ27 | 20 | 1.35 | 17.55/20.48 |
| DMF-ZF-25 | Φ25 | 1” | 96 | Φ34 | 25 | 1.65 | 26.16/30.53 |
| DMF-ZF-40S | Φ40 | 1 1/2” | 111 | Φ48 | 40 | 2.5 | 45.85/53.47 |
| Tolerance:+0.22～+0.44 | |||||||
Products
- View as
DMF-Z-50S Pulse Valve
DMF right angle pulse valve DMF-Z-50S is 2 inch BFEC type pulse valves, used in baghouse system to clean dust.
View DetailsSend Inquiry
DMF-Z-40S Pulse Valve
DMF-Z-40S Pulse Valve is 1.5 inch pulse valve, commonly used in dust collector systems and baghouse systems. The pulse valve has various voltages for your choice, such as 24VDC, 110VAC and 220VAC, etc.
View DetailsSend Inquiry
DMF-Z-25 Pulse Valve
The DMF-Z-25 dust collector electromagnetic pulse valve is a quick-installation pulse jet valve with an inlet and outlet angle of 90°. It generates a strong compressed air pulse to remove the accumulated dust on the filter bag, ensuring continuous and effective cleaning of the filtration device. The DMF-Z-25 pulse valve is mainly used in dust removal systems to regulate the flow of compressed air delivered to the pulse jet dust removal system. This valve is widely used in industries such as cement, power, chemical, and metallurgy, and is crucial for efficient dust removal.
View DetailsSend Inquiry
DMF-Z-20 Pulse Valve
DMF-Z-20 Right-Angle Electromagnetic Pulse Valve The electromagnetic pulse valve (also known as a diaphragm valve) serves as the compressed air “switch” for the pulse-jet cleaning system in pulse-jet baghouse dust collectors. Controlled by signals from the pulse-jet control instrument, it sequentially performs pulse-jet cleaning on filter bags by row (or compartment), maintaining the dust collector's resistance within a preset range to ensure its processing capacity and dust collection efficiency.
View DetailsSend Inquiry
DMF-Z Pulse Valve
The DMF-Z pulse valve is a dedicated right-angle solenoid valve for the cleaning blowback system of baghouse dust collectors. It is suitable for cleaning various filter elements including filter bags (round bags, flat bags, irregular-shaped bags, metal fiber bags), filter cartridges, ceramic tubes, and sintered plastic plates.
View DetailsSend Inquiry

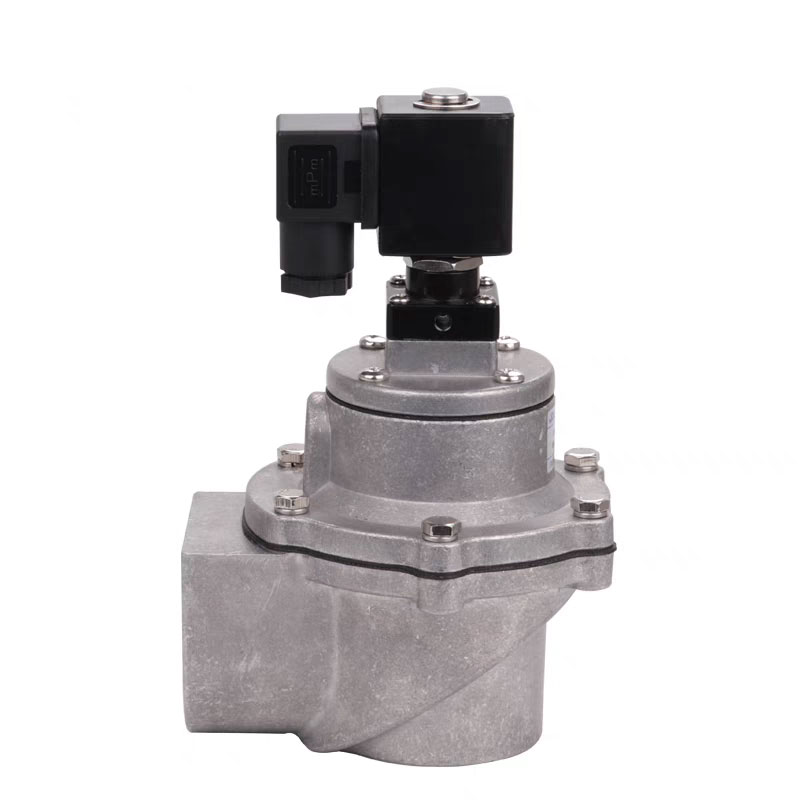

Industrial MD Pulse Valve
Star Machine is a professional China Industrial MD Pulse Valve manufacturer and supplier.This valve is also compatible with pulse controllers, ensuring efficient operation in your dust cleaning system.If you are interested in our Industrial MD Pulse Valve services, you can consult us now, we will reply to you in time!
View DetailsSend Inquiry
Welcome to Star Machine, where you can obtain top-notch DMF Pulse Valve directly from our cutting-edge factory in China. As a prominent manufacturer and supplier of DMF Pulse Valve, opt for Star Machine to experience a blend of exceptional quality, unmatched durability, and a steadfast commitment to customer satisfaction. Our products are readily available in stock for wholesale purchases, providing you cheap products.
