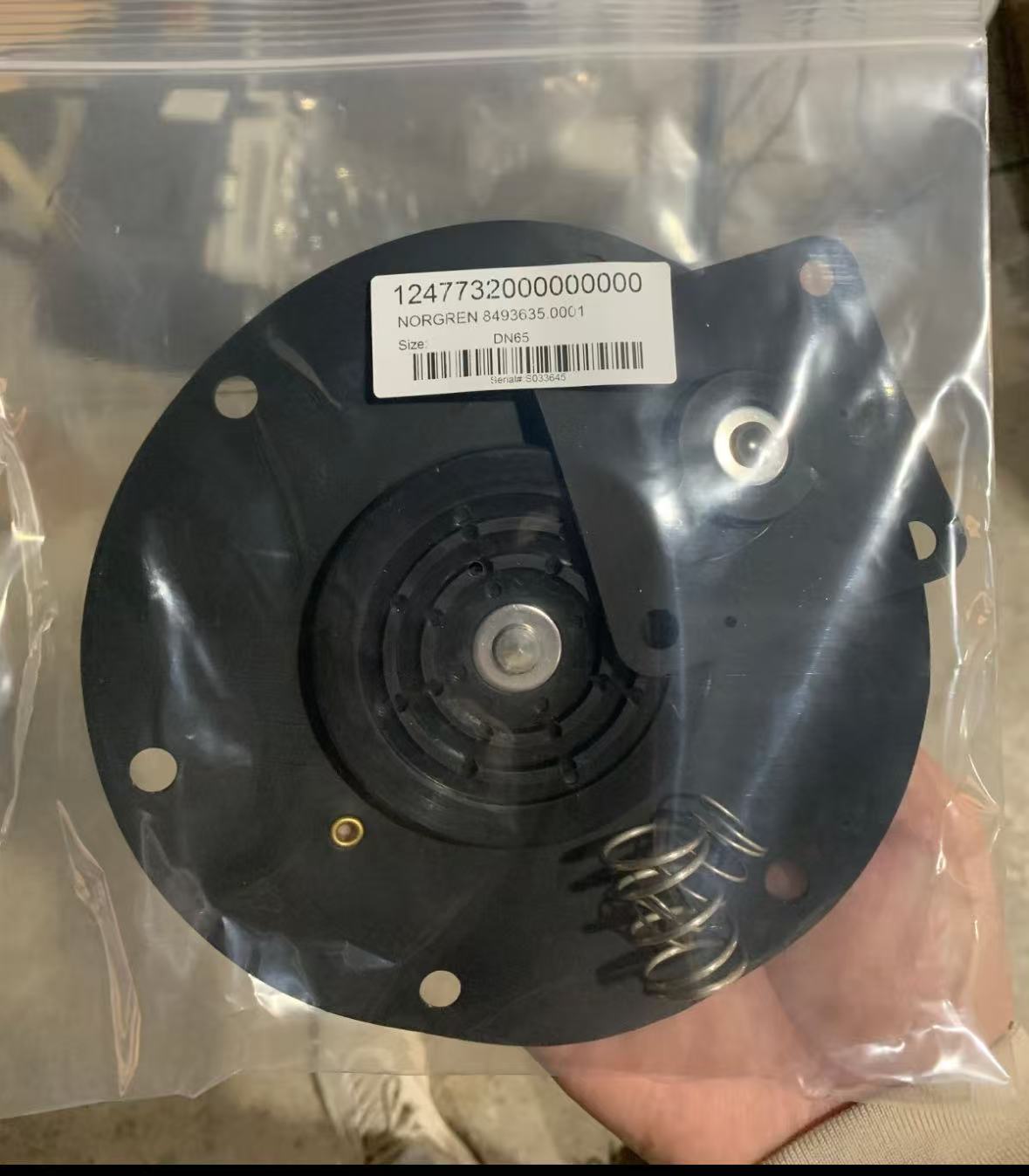

1247732 2'' Pulse Valve Diaphragm Repair Kits 8493635

This 1253119 & 1247732 diaphragm is a perfect replacement part for Norgren Buschjost 2'' and 2.5'' pulse valve 8493635. It’s the core part for the valve’s blowing function, and each set weighs only 0.3KG.

Model:8493635

Send Inquiry

Product Description

The 1253119 & 1247732 diaphragm is the key component to control the blowing of your Norgren Buschjost pulse valve 8493635. When the valve is powered on, the diaphragm quickly releases the trapped air above it, making the main valve open fast. When the valve is powered off, it balances the pressure by releasing air through the exhaust hole, and the valve closes at once. Replace your old diaphragm with this part, and your pulse valve will work well again.

Key Product Details

· Fit for: Norgren Buschjost pulse valve 8493635

· Valve size: 2'' & 2.5''

· Weight per set: 0.3KG

· Main function: Control the valve’s blowing and on-off

Ordering Code

Diaphragm Model	Pulse Valve Model	Pulse Valve Port Size	Diaphragm Material
1261253 (N300)	8296300.8171, 8297300.8171	3/4''	TPE
1261253 (N400)	8296400.8171, 8297400.8171	1''	TPE
1261402 (N600)	8296600.8171, 8297600.8171	1 1/2''	TPE
1268274 (N700)	8296700.8171, 8297700.8171	2''	TPE
1268274 (N700)	8296800.8171, 8297800.8171	2 1/2''	TPE
1271526 (N900)	8296900.8171, 8297900.8171	3''	TPE
1247732 (B050)	8493635	2''	NBR, FKM
