C113825 Diaphragm Kit

C113825 Diaphragm Kit for ASCO Pulse Valve G353A045

Summary

The C113825 diaphragm kit is OEM kit for ASCO pulse valve G353A045, it is very suitable for dust collector systems with high flow and fast on-off performance. This kit have NBR and Viton material options for different temperature needs.

Product Description

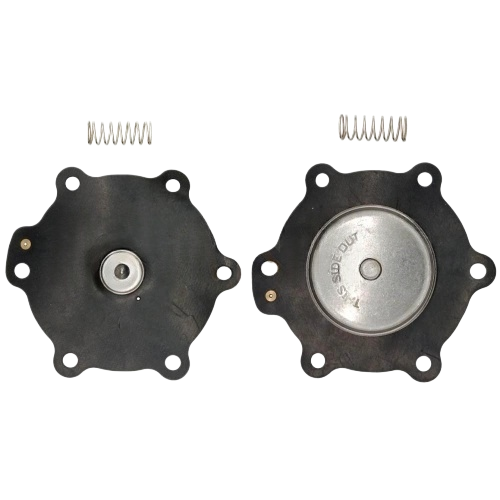

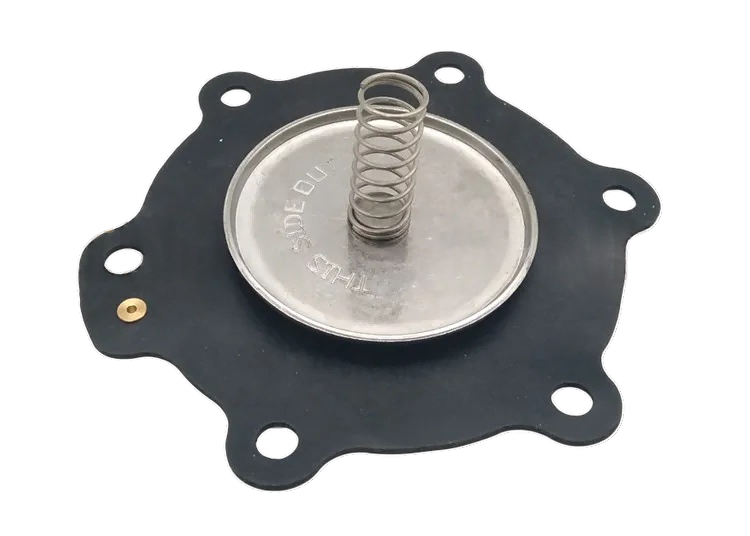

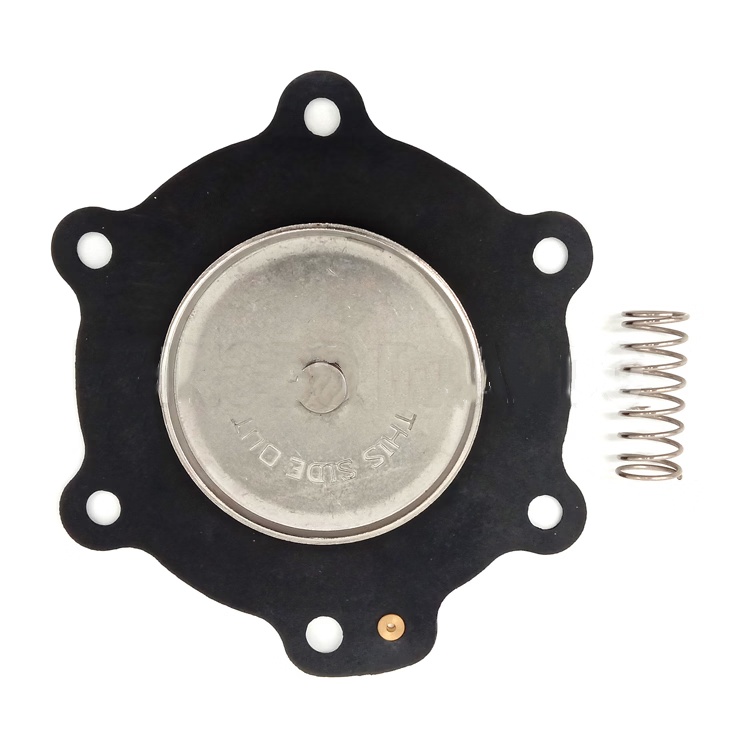

The C113825 diaphragm kit is exclusively designed for ASCO pulse valve G353A045, a perfect replacement solution for dust collector service applications. The kit includes a diaphragm assembly, a core assembly and 2 springs—all the parts needed for quick valve maintenance and repair. The diaphragm is made of corrosion-resistant rubber, with two material choices: standard NBR (works at -5~+80℃) and optional Viton (works at -10~+120℃), matching different working temperature requirements.

The C113825 diaphragm kit delivers the core performance ASCO pulse valves need: high flow rate, extremely fast opening and closing, and durable operation. Its angle-type body and integral compression fitting design make installation easy, no threaded piping required, saving your maintenance time and effort.

Product Features

● - Designed to fit ASCO pulse valve G353A045 like a glove. Great for dust collector systems.

● - Two material options to suit different temperature needs. NBR (-5~+80℃) / Viton (-10~+120℃)

● - This corrosion-resistant rubber diaphragm will last a long time.

● It has a high flow rate and fast on-off for stable, economical dust collector operation.

● It has integral compression fittings, so no threaded piping is needed for easy installation.

Maintenance Reminders

● Inspect the diaphragm and pilot of the C113825 diaphragm kit once a year for optimal performance.

● Isolate the system from all pressure and power before any maintenance work.

● Do not reapply pressure or power until the valve is fully and correctly assembled.
