Goyen 3-5V5 Pilot Valve Enclosure

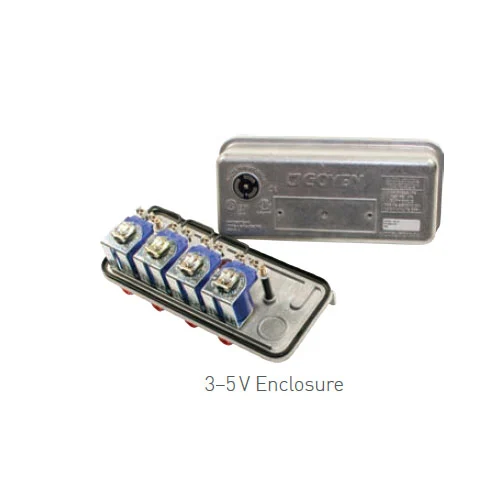

Goyen 3-5V5 Pilot Valve Enclosures, are diecast aluminium enclosures for Goyen RCA3D pilot valves, available optionally with anti-condensation heater.
Send Inquiry
Product Description
Caution
For reliable operation, ensure supply voltage is within -10% and +15% of rated solenoid voltage.
To guarantee NEMA4 performance ensure gasket is in place when attaching lid to enclosure base.Replace components within 1 million cycles (refer to Spare Parts).
CONSTRUCTION
Body: Aluminium (die cast)
Pilot Body: Aluminium (die cast)
Ferrule: 305SS
Armature: 430FR SSSeals: Nitrile
Screws: 302 SS or 304 SSClip: Mild steel(plated)
OPERATION
Recommended on time range: 50-500 ms
Recommended time between pulses: 1 minute or greater
OPTIONS

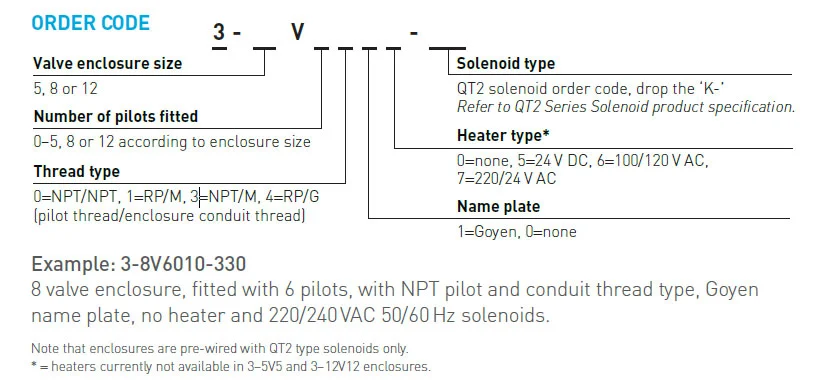

Heater, see order code below.
Goyen 3-5V5 Pilot Valve Enclosure PERFORMANCE
| FLOW |
MAXIMUM WORKING PRESSURE |
MINIMUM WORKING PRESSURE |
TEMPERATURE MAX |
TEMPERATURE MIN |
Fluid Media |
| 0.32 Cv | 860kPa | 0kPa | -40°C | 82°C | Air or inert gas |
| 0.27 Kv | 125 psi | 0 psi | -40°F | 180°F |
Refer to Q Series Solenoid product specification for electrical performance details.
Goyen 3-5V5 Pilot Valve Enclosure SPARE PARTS
K0380 Nitrile replacement seal, armature, spring & ferrule kit.
K0384 As above in viton.
RCA3D0-*** Replacement pilot assemblies.
RCA3D1-*** Refer to RCA3 Solenoid Pilot Valves brochure.
