Qingdao Star Machine shipped filter bag cages to Mauritania Customer

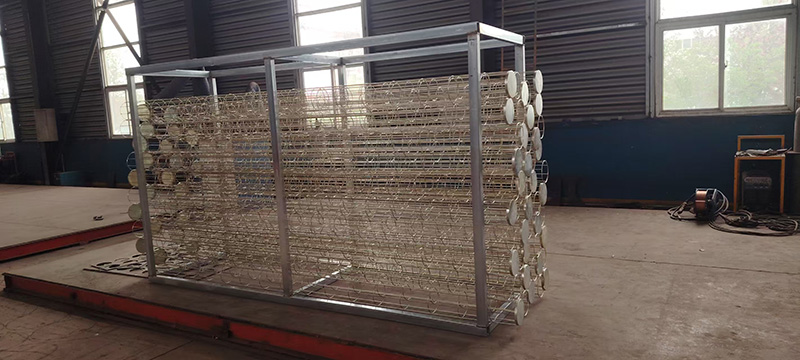

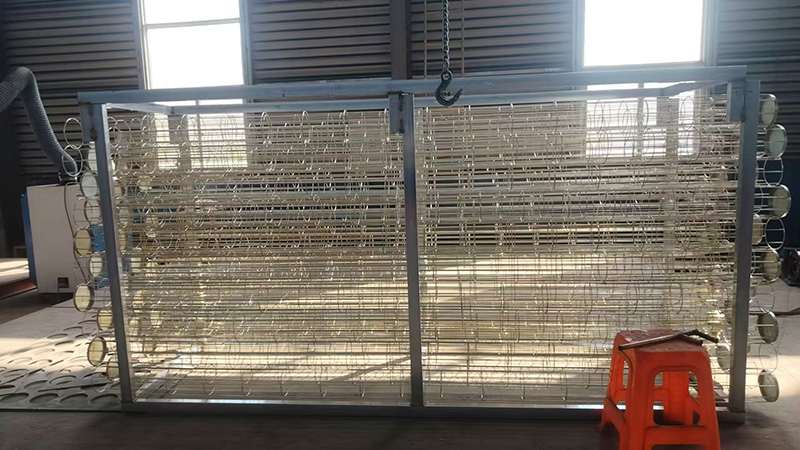

We exported a batch of high quality galvanised steel filter bag cages to Mauritania for the first time. Before shipment, we took photos and inspected the product carefully to ensure that the surface of the bag cage is free of burrs and will not damage the filter bag.

The bag cage of external filter bag can be divided into round bag cage and flat bag cage according to the shape of the filter bag, top loading and bottom loading according to the loading and unloading method, and cage, tension spring and sectional bag cage according to the structure of the bag cage itself. Each type of bag cage has different application scenarios.

Round bag cages are suitable for cylindrical filter bags, while flat bag cages are suitable for non-conventional filter bags such as envelope, trapezoidal, oval and so on.

When the loading and unloading space of the upper part of the pulse dust collector is restricted, the lower mounted bag cage can be used to facilitate loading and unloading.

Cage-type bag cage is the most common bag cage composed of support ring and longitudinal bars, the diameter ranges from 120-160mm, longitudinal bars ranging from 12-24. It should be noted that the number of longitudinal bars will affect the efficiency of the filter bag cleaning, increase the number of longitudinal bars, although it increases the strength of the filter bag, reduce the degree of deformation of the filter bag, but also makes the filter bag filtration area reduced, weakening the intensity of cleaning.
