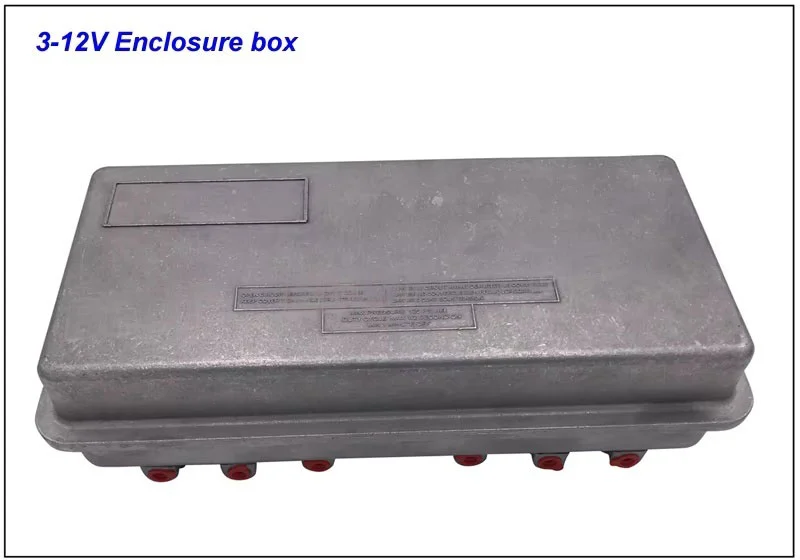

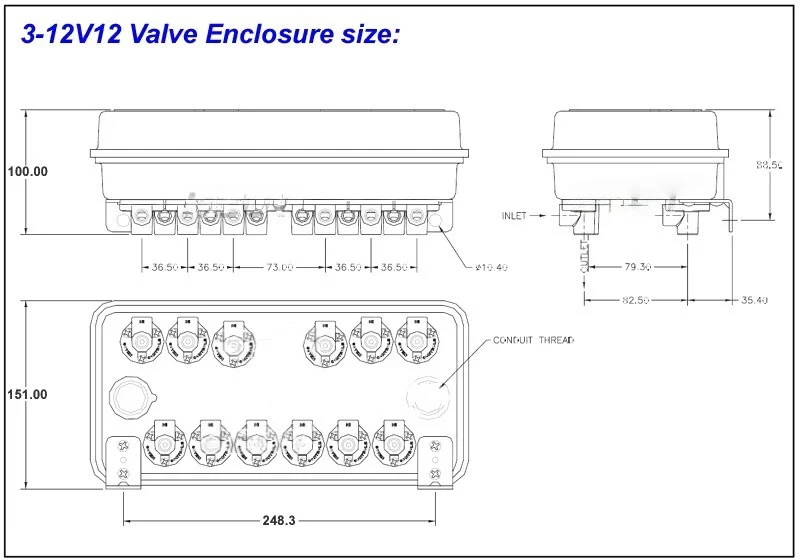

RCA3-12V Enclosure

RCA3-12V enclosure is a valve box used to install remote control pulse valves, 12V means it can install 12pcs RCA3D type valves. We also have 5ways type and 8ways type for different customer needs.

Send Inquiry

Product Description

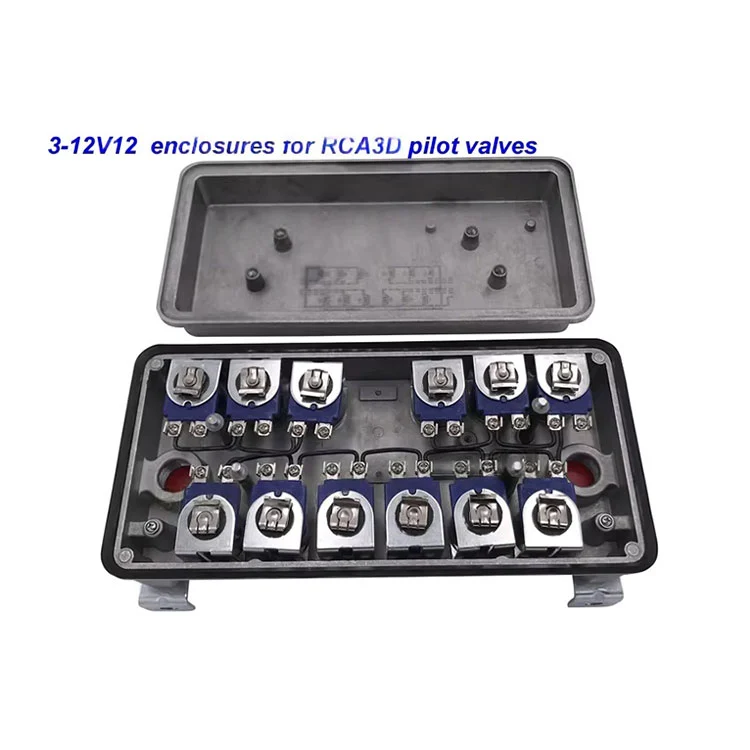

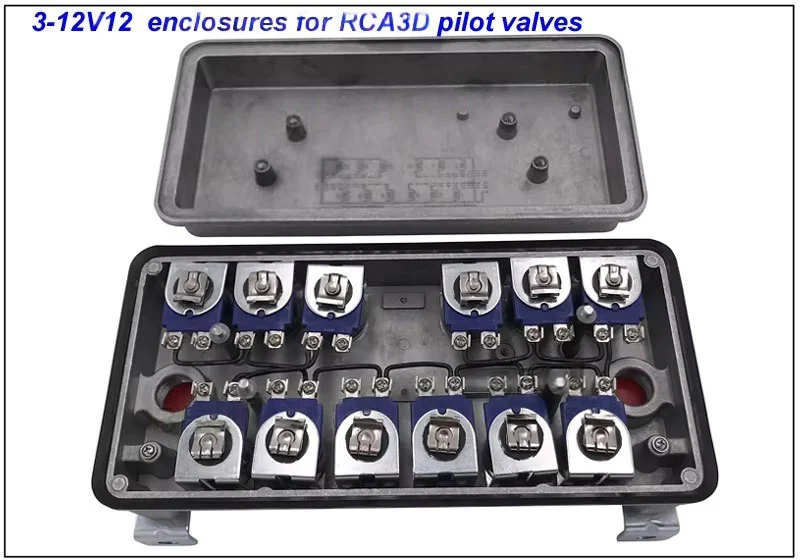

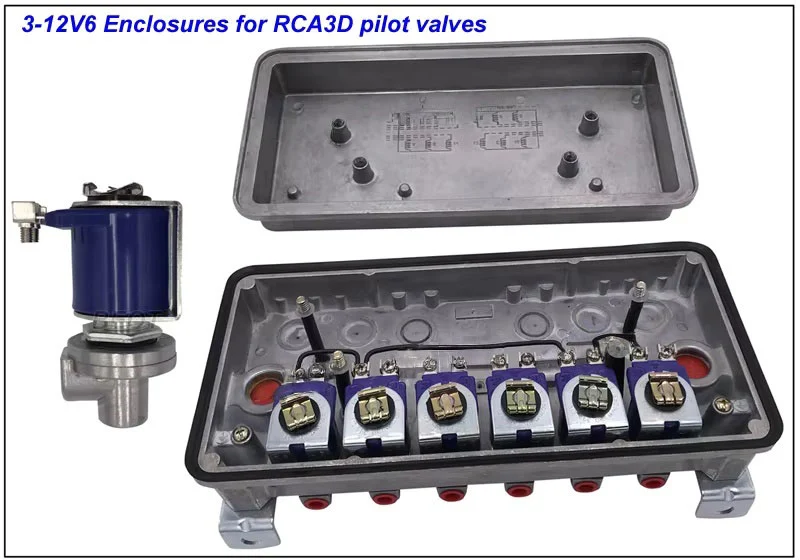

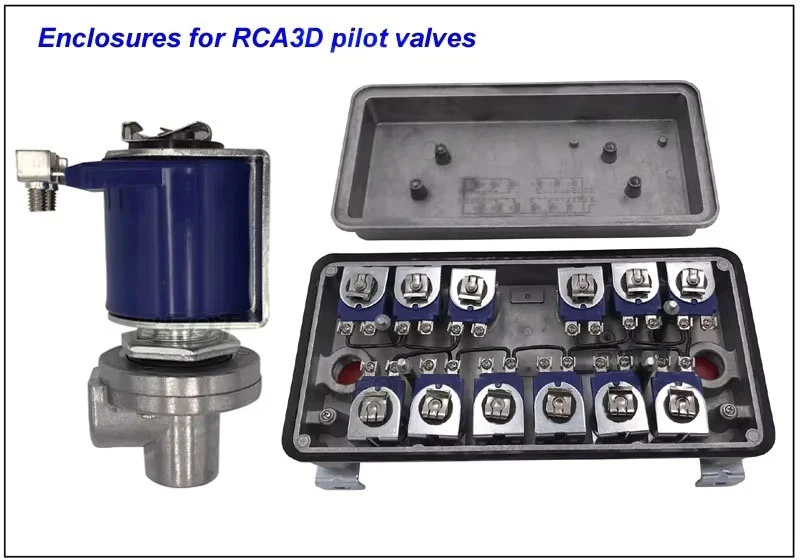

RCA3-12V Enclosure for RCA3D Pilot Valves

RCA3-12V type duct collector remote pulse controller enclosure box for air control valve.

Die-cast aluminium Enclosure for RCA3D pilot valves, It is duct collector remote pulse controller enclosure for air control valve, we have 8 & 12 valve enclosure size, voltage normal is 220VAC, 24VDC, 110VAC.

Ensure device is disconnected from the power before opening the enclosure.

For reliable operation, ensure supply voltage is within -10% and +10% of rated solenoid voltage.

Construction

Body:	Aluminium(diecast)
Pilot Body:	Aluminium(diecast)
Ferrule:	304 SS
Armature:	430FR SS
Seals:	Nitrile
Screws:	302 SS

RCA3-12V Enclosure Technical Data
Working pressure	0.1~0.8Mpa
Relatively humidity	<85%
Working medium	Clear Air
Voltage	AC110V/AC220V/DC24V
Ambient Temperature	for -5~50°C
Seal material	NBR(Nitrile) (NBR for -10~70°C)
Body material	die-cast aluminium
