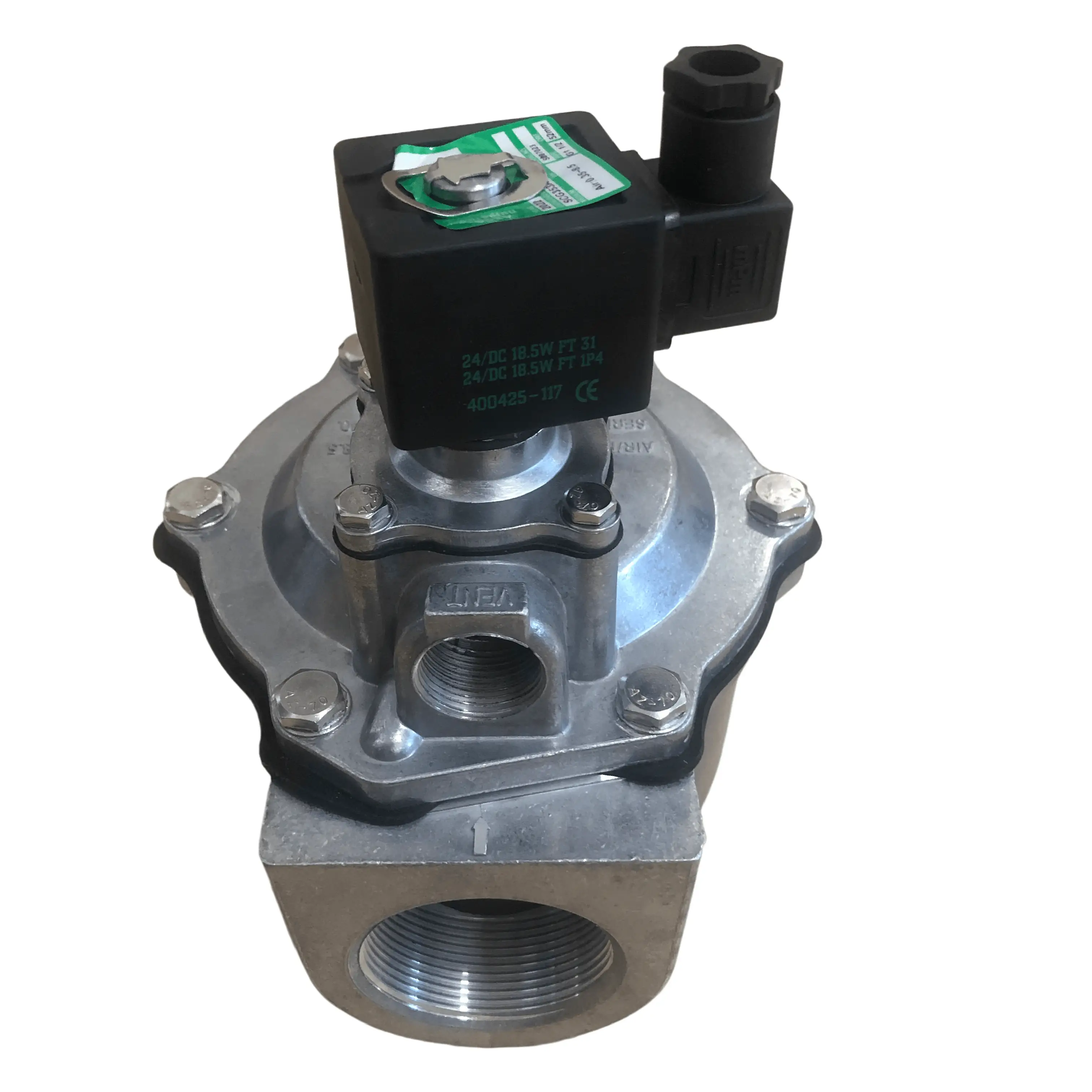

SCG353A050 Pulse Jet Valve

SCG353A050 Pulse Jet Valve

SCG353A050 Pulse Jet Valve is 2 inch pulse valve, suitable for baghouse systems, can be used in high pollution industries, such as thermal power plants, cement plants, asphalt plants, and others.
Model:SCG353A050

Send Inquiry

Product Description

Product Description:

SCG353A050 Pulse Jet Valve is designed to deliver higher-energy gas pulses while minimising compressed air consumption. On average, it achieves a 15% reduction in compressed air usage.

SCG353A050 Pulse Jet Valve is easy to install, No need to train workers, thereby reducing labour costs.



Technical data of SCG353A050 Pulse Jet Valve:



Model No
SCG353A043
SCG353A044
SCG353A047
SCG353A050
SCG353A051
Port Size
G3/4''
G1''
G1-1/2''
G2''
G2-1/2''
Nominal Size
φ20mm
φ25mm
φ40mm
φ50mm
φ62mm
Working Pressure
0.3 to 0.8MPa
Environment Temperature
-5 to +55℃
Relative Humidity
≤85%
Operating Medium
Dry clean compressed air
Service Life
Over one million times
Voltages
AC24V, AC110V, AC220V, DC24V





Product Advantages:


SCG353A050 Pulse Jet Valve used in dust extraction systems, and the system have some great benefits:


1. We're working to cut our overheads.

Plus, it keeps the air clean, which means less maintenance costs, longer equipment lifespan and lower energy consumption.


2. We can help you to deal with any potential risks.

By making sure our workplaces are safe and clean, we can cut health risks and fire hazards.


3. We're working on making our production more efficient.

Keeping equipment in good nick and making sure employees don't call in sick or get hurt means you can get more done.


4. We're working on raising the bar on product quality.

We're working hard to keep the workplace virtually dust-free, and this has really improved product quality and reduced defect rates caused by dust.


5. Making sure everyone's physically healthy and safe.

It's really important to keep your work area clean and hygienic.


6. Meeting workplace regulations and safety requirements

We help businesses get to grips with government regulations.



Hot Tags: Pulse Jet valve, pulse solenoid valve, SCG353A050, pulse valve
