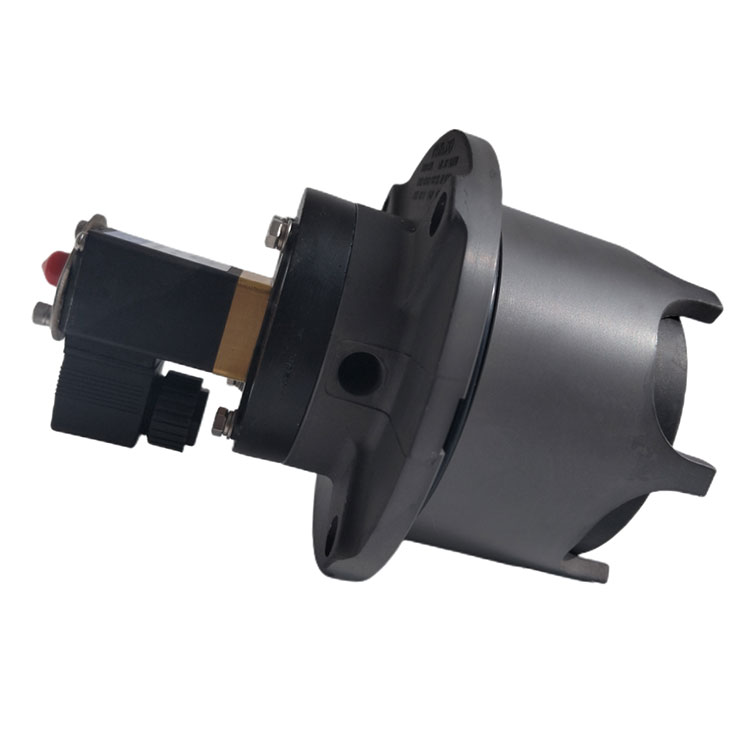

High Efficiency Piston Diaphragm Valve

Designed with cutting-edge technology and rugged materials, the High Efficiency Piston Diaphragm Valve solves the most critical issues for engineers, operators, and maintenance teams across industries.

Send Inquiry

Product Description

青岛星机生产的高效活塞隔膜阀，其阀体和阀盖均采用耐用的铝合金压铸而成，外观精美，强度高，确保无泄漏现象。阀门压力通道设计合理，阀门的开启面和关闭面基本位于气囊内，真正实现了“浸没式”设计，气囊直接进入喷管，从而实现对空气的控制，真正满足低压大喷射量的需求。

Piston Diaphragm Valve

适用于不同类型 Optipulse 织物过滤器的紧凑型脉冲阀。

1.是多年在织物过滤技术领域经验的结晶。

2.起效快，效率高。

3.尺寸小巧，名称后面的数字代表

柱塞的直径。

4.主要设计用于与圆形压力罐配合使用。

5.易于安装和维护。

6.Has a very robust design,designed for normal use at air pressure up to 600kPa(6bar).Normal max operating temperature(compact pulse valve)50°C.

7.Longer Service Life,More than Twice Service Life in the Same Industry .One Year Free Quality Assurance Service.

Product Parameter (Specification)

Working pressure	0.2-0.6MPa	Diaphragm life	Over one million cycles
relative humidity	＜85%	working medium	Clean air
voltage, current		DC24V，0.8A；AC220V，0.14A；AC110V，0.3A

High Efficiency Piston Diaphragm Valve

Product Feature And Application

Piston Diaphragm Valve advantages are mainly reflected in the following aspects:

(1)High efficiency: the Piston Diaphragm Valve opens quickly, so the shock pressure loss is very small, because the opening sequence is easy to control, so the gas volume can be selected according to the different process.

(2)Low loss of compressed air: The Piston Diaphragm Valve reduces the amount of compressed air consumed compared to the diaphragm type.
