Pneumatic Valve for Baghouse Air Dust Collector
  • Pneumatic Valve for Baghouse Air Dust Collector Pneumatic Valve for Baghouse Air Dust Collector
  • Pneumatic Valve for Baghouse Air Dust Collector Pneumatic Valve for Baghouse Air Dust Collector

Pneumatic Valve for Baghouse Air Dust Collector

Qingdao Star Machine is a professional manufacturer of Pneumatic Valve for baghouse air dust collector with rich producing and exporting experience. Baghouse dust collector is a dry type dust filtering device and they are commonly used in industrial production processes to remove dust and other pollutants from the air. They work by passing the air through a series of filters that trap the dust and other pollutants with the help and action of pneumatic valve for baghouse air dust collector.It is suitable for capturing fine, dry, non-fibrous dust. When the dusty gas enters the bag filter, the dust with large particles and large specific gravity will settle down and fall into the dust hopper due to gravity, and the gas containing fine dust will be blocked when it passes through the filter material, so that the gas will be purified.

Send Inquiry

Product Description

SMCC高品质气动阀是袋式除尘器的重要组成部分,用于控制空气流经过滤器的流量。它根据过滤器清洁侧和脏侧之间的压差开启和关闭。当压差超过一定阈值时,气动阀开启,允许空气流经过滤器;当压差低于一定阈值时,气动阀关闭,阻止空气流经过滤器。

Starmachinechina 脉冲阀 135 是一种用于袋式除尘器的气动阀,在世界范围内拥有广阔的市场。


基本功能:

主要特点 描述
姓名 星机中国脉冲喷射阀
模型 V1614718-0301
尺寸 4英寸
公称直径 DN100
健康)状况 全新
品牌 SMCC
质量 好的
特征 耐用、高性能
优势 易于安装
耐久性 寿命长,可循环一百万次
用法 工业用袋式过滤器
工作介质 清洁干燥的压缩空气
注射时间(脉冲宽度) 60-100毫秒
脉冲间隔时间 ≥60秒
过滤区域 120平方米
用于过滤袋 27 件
工作压力 0.2-0.6兆帕
防护等级 IP65
绝缘等级 H
KV/CV值 518.85/605.5
保修单 24个月

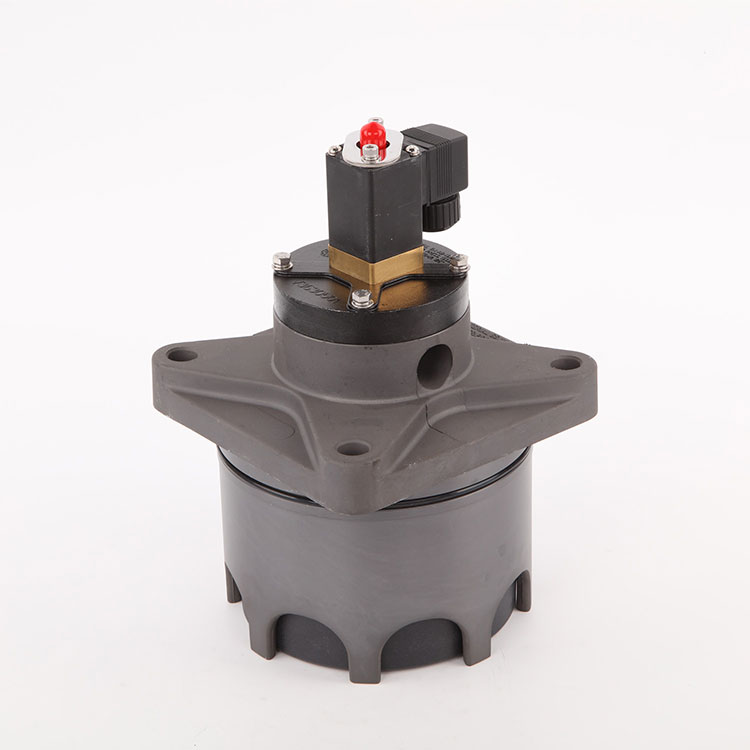

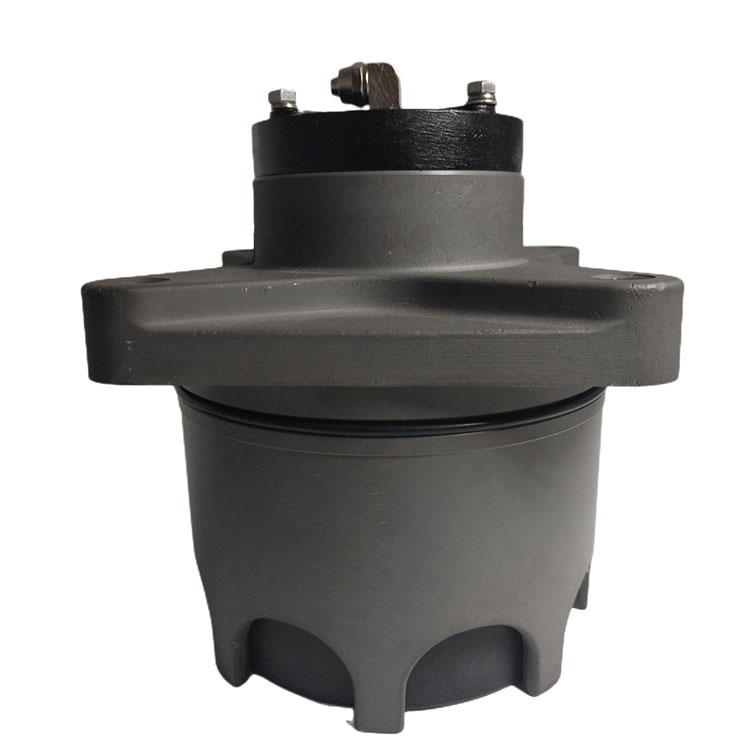

袋式除尘器气动阀产品图片:

袋式除尘器气动阀


袋式除尘器气动阀主要部件的材料:

袋式除尘器气动阀

产品名称 文章编号 位置编号
Starmachinechina 135(24V) V1614718-0100
Starmachinechina 135 (100V,50 Hz) V1614718-0301
Starmachinechina 135 (120V, 60Hz) V1614718-0400
Starmachinechina 135(120V 60Hz UL认证) V1614718-0700
Starmachinechina 135(无电磁阀,旋转90°) V1614718-0800
V4549902-0100
O型圈(氟橡胶 64.5 x 3.1) 8003-5573
O型圈(丁腈橡胶70SH 64.5 x 3.1) 2136-1422
O型圈(143 x 3.1) 2136-1441
飞行员封面 V3630501-0100
盘子 V3630524-0100
柱塞 V3629022-0100
圆形垫圈(SS3576-5-200HV FE/ZN25) 4903-2146
橡胶圆盘 V3640660-0100
电磁阀(24V直流) V3611471-0100
电磁阀(100V,60Hz) V3611471-0201
电磁阀(110伏,50赫兹) V3611471-0300
电磁阀(110伏,60赫兹) V3611471-0200
电磁阀(120伏,60赫兹) V3611471-0400
电磁阀(120V,60Hz-UL认证) V3640645-0200
电磁阀(230V,50Hz) V3611471-0500
电磁阀(110伏,60赫兹) V3611471-0200
电磁阀(120伏,60赫兹) V3611471-0400
电磁阀(120V,60Hz-UL认证) V3640645-0200
电磁阀(230V,50Hz) V3611471-0500


部分 材料
阀门室 铝合金ABC-12
柱塞 增强尼龙66
丁腈橡胶
橡胶圆盘 特种橡胶
O型圈 氟橡胶
飞行员封面 铝合金ABC-12


袋式除尘器气动阀包装详情:

袋式除尘器气动阀

星机中国柱塞脉冲电磁气阀 135 数量 纸箱包装尺寸(含泡沫盒)
1个 185毫米*195毫米*297毫米
2件 380毫米*195毫米*297毫米
4件 380毫米*380毫米*297毫米
6件 580毫米*380毫米*297毫米


我们的售后服务优势:

感谢您选择青岛星辰机械作为您的工业除尘器供应商。我们拥有超过20年的经验,致力于提供高质量的产品和卓越的服务。我们的专业团队将为您提供详细的产品信息、定制建议并解答您的疑问。我们提供定制化的运输方式和安全的包装。如有任何需求或疑虑,请随时联系我们。
