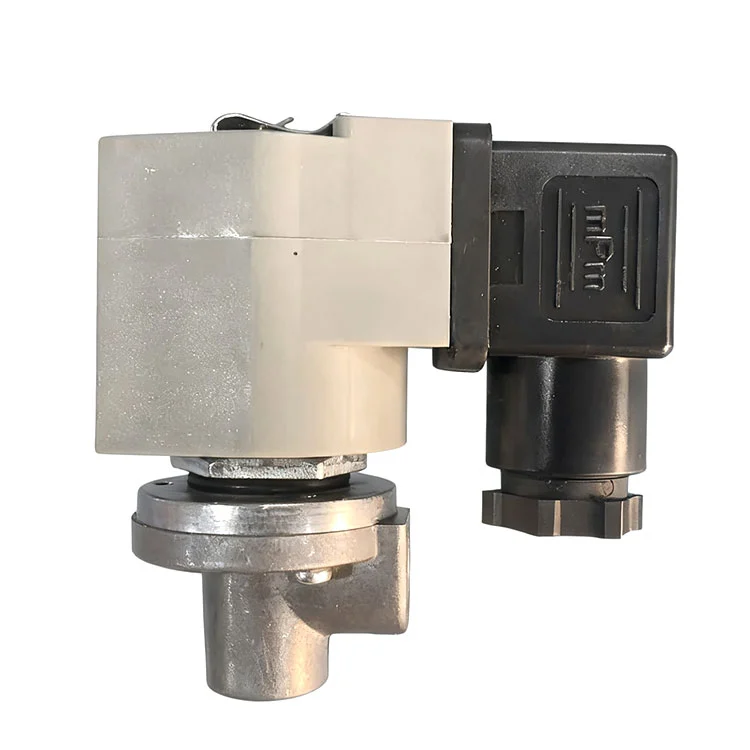

RCA3D1 Pulse Valve

RCA3D1 pulse valve is a new model type of remote control pulse valve, and has 4 types solenoid coil that suitable for different working environments. The valve uses standard imperial threads.

Send Inquiry

Product Description

The RCA3D1 Pulse Valve is Goyen's new model. The RCA3D0 features a US standard NPT 1/8‘ threaded interface; the RCA3D1 features a British standard BSPP 1/8’ threaded interface. The RCA3D2 is the older model, and all Goyen pilot valves have RCA3D2 printed on the valve body.

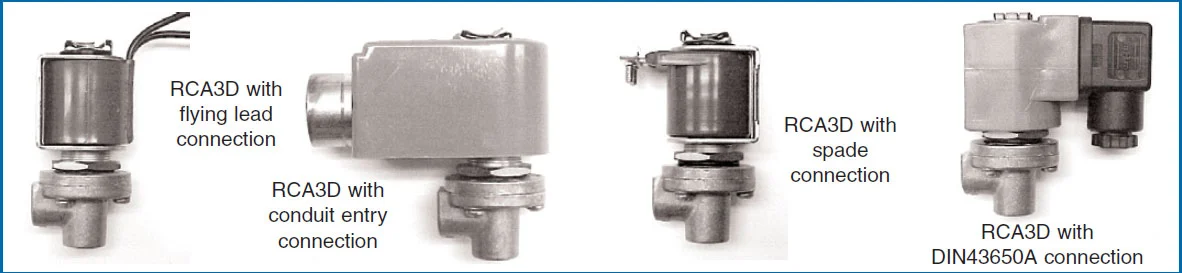

The RCA3D pneumatic control solenoid pilot valve is used to control the activation of the RCA pulse valve. There are four common configurations, from left to right:

Rca3d1 Pulse Valve

RCA3D equipped with flying lead connection coil

RCA3D equipped with wire conduit entry connection coil

RCA3D equipped with screw port connection coil

RCA3D equipped with DIN43650A port connection coil

Rca3d1 Pulse Valve

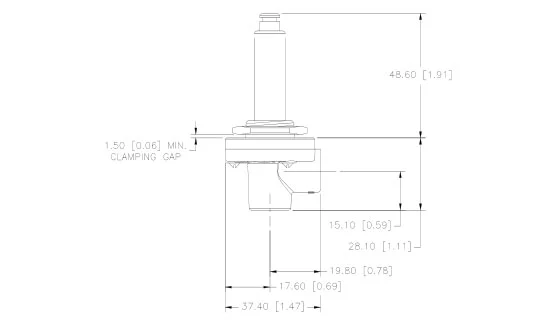

RCA3D1 Pulse valve schematic diagram

Product Performance

Flow Coefficient	Maximum Working Pressure	Minimum Working Pressure	Minimum Temperature	Maximum Temperature	Gas Medium
Cv=0.32	860 kPa	0 kPa	-40 C	82 ℃	Air or Inert Gas
