RCA3D2 Pilot Valve

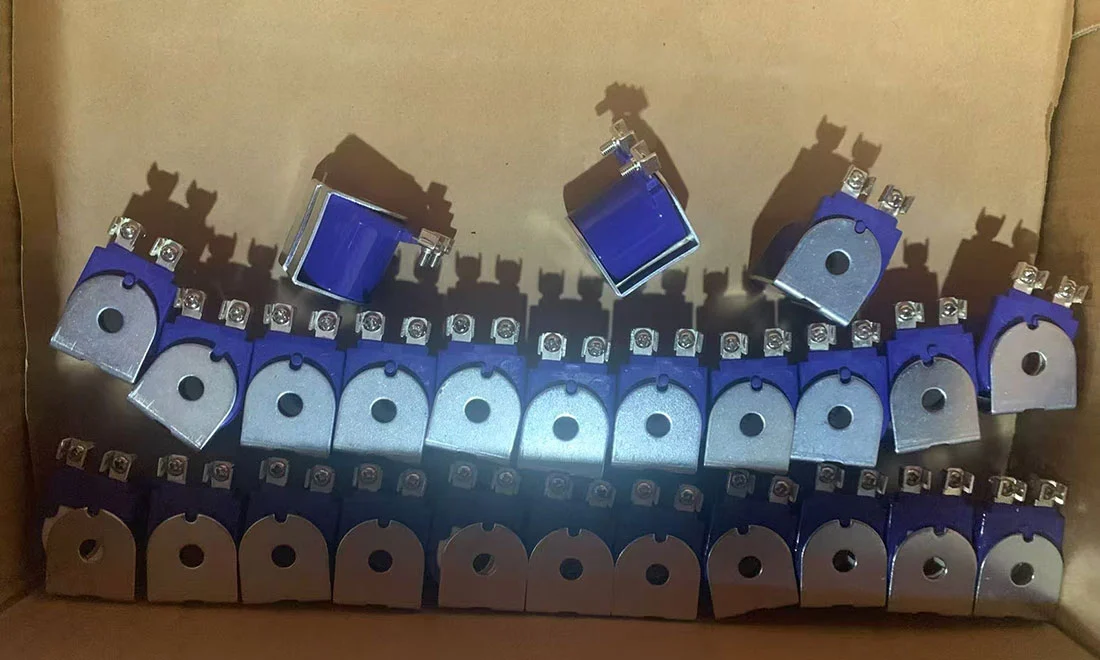

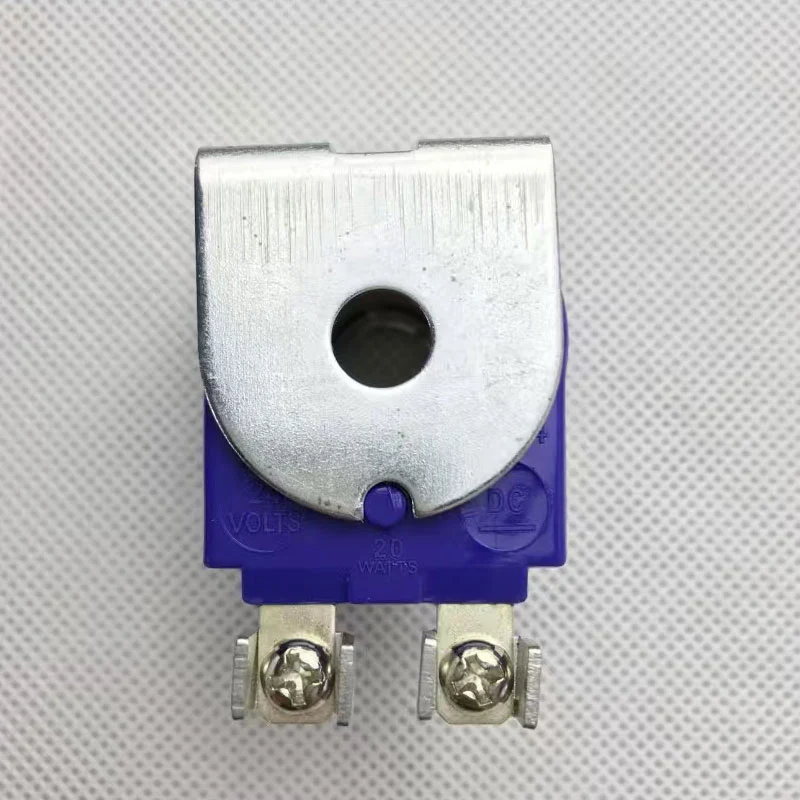

RCA3D2 Pilot Valve is also known as Q series solenoid coil, the pilot valve is suitable for all Goyen type pulse valves, RCA3D series pulse valves and pulse valve box.

Send Inquiry

Product Description

Application Scope

RCA3D2 Pilot Valve is suitable for all Goyen pneumatic control pulse valves and is compatible with various pulse dust removal systems in Goyen environments. This ensures that it can operate stably in harsh conditions.

RCA3D2 Pilot Valve Installation Instructions

1. Installation hole requirements: Drill installation holes with a diameter of ф19.3 - 19.4mm on the installation plate of the pilot valve.

2. Installation plate thickness: The thickness of the installation steel plate must exceed 1.5mm to ensure installation strength.

3. Sealing and Assembly:

a. Before tightening the nuts, ensure that the O-ring is properly installed to guarantee sealing performance.

b.It is recommended to assemble the electromagnetic coil onto the pilot valve before installing the pilot valve to improve installation efficiency.

4. Voltage requirements: To ensure normal operation of the pulse valve, the input voltage of the solenoid valve must be maintained within the range of -10% to +15% of the coil voltage.

RCA3D2 Pilot Valve Material specifications

Parts	Material
Valve body	Die-cast aluminium alloy
Push rod	304 stainless steel
Armature	430FR stainless steel
Sealing ring	Nitrile (nitrile rubber)
Nut	Galvanised carbon steel
Screw	302 stainless steel
Clamp	Carbon steel (mechanically pressed)

Operating parameters

•Recommended pulse width: 50–500 ms

•Recommended pulse interval: 1 minute or more

Product Performance Parameters

Performance Indicators	Parameter Details
Flow Coefficient	Cv＝0.32
Maximum Working Pressure	860 kPa
Minimum Working Pressure	0 kPa
Minimum Working Temperature	-40 ℃
Maximum Working Temperature	82 ℃
Applicable Gas	Medium Air or inert gas

Product Ordering Model Details

Model Port Size	Thread Type	Exhaust Port Size
RCA3D0	1/8” NPT	3.2mm
RCA3D1	1/8” BSPP	3.2mm

Operating parameters

Model Specifications: Please refer to the K-parameters in the Q-type electromagnetic coil data sheet and select the specific model based on voltage requirements.

Example:

•RCA3D0 - 300 = 1/8" NPT inlet port, voltage 200/240VAC, with DIN terminal block.

•RCA3D1 - 336 = 1/8" BSPP inlet port, voltage 24VDC, with screw terminal wiring (suitable for electromagnetic assembly boxes).

Maintenance Parts

•K0380: Includes Nitrile O-ring seals, armature, springs, and pushrod assembly.

•K0384: Includes Viton material seals and all components from K0380.

•Weight: RCA3D0, RCA3D1 (without coil) is 0.174 kg
