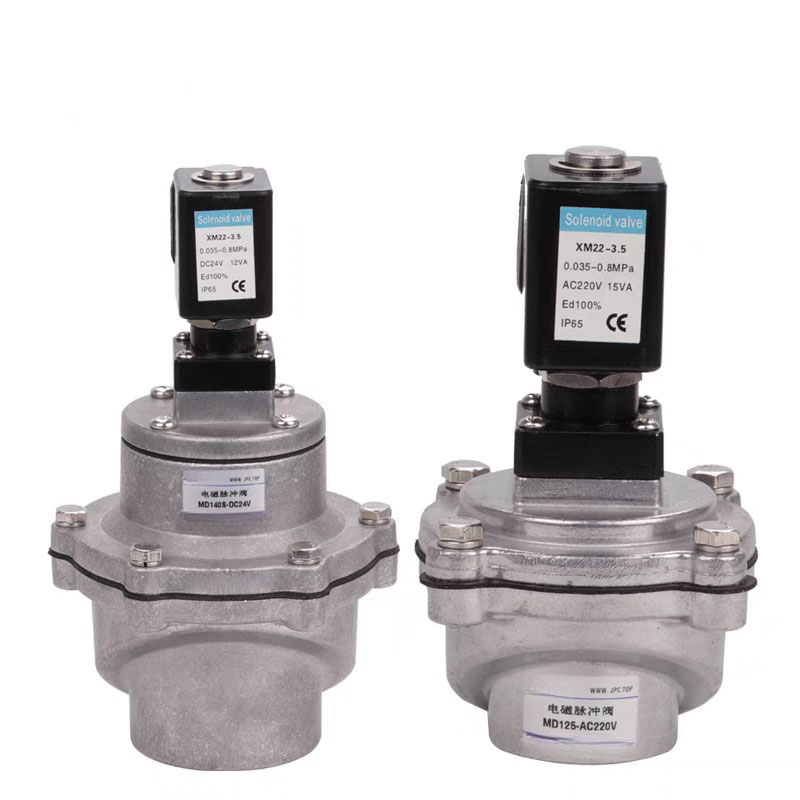

MD Pulse Control Valve

In the field of industrial automation, the MD Pulse Control Valve is a key component to ensure seamless operation of dust collection, powder coating and various other industrial processes. This innovative product combines precise control with a rugged design to solve key problems for customers in different industrial fields.

Send Inquiry

Product Description

MD脉冲控制阀概述

MD脉冲控制阀在脉冲袋式除尘器的喷淋清尘系统中充当压缩空气的“开关”。它连接储气罐和除尘器的喷淋管，并在脉冲控制器的控制信号下运行，从而高效地清洁滤袋。该阀设计响应迅速、性能可靠，这对于在工业环境中保持高运行效率至关重要。

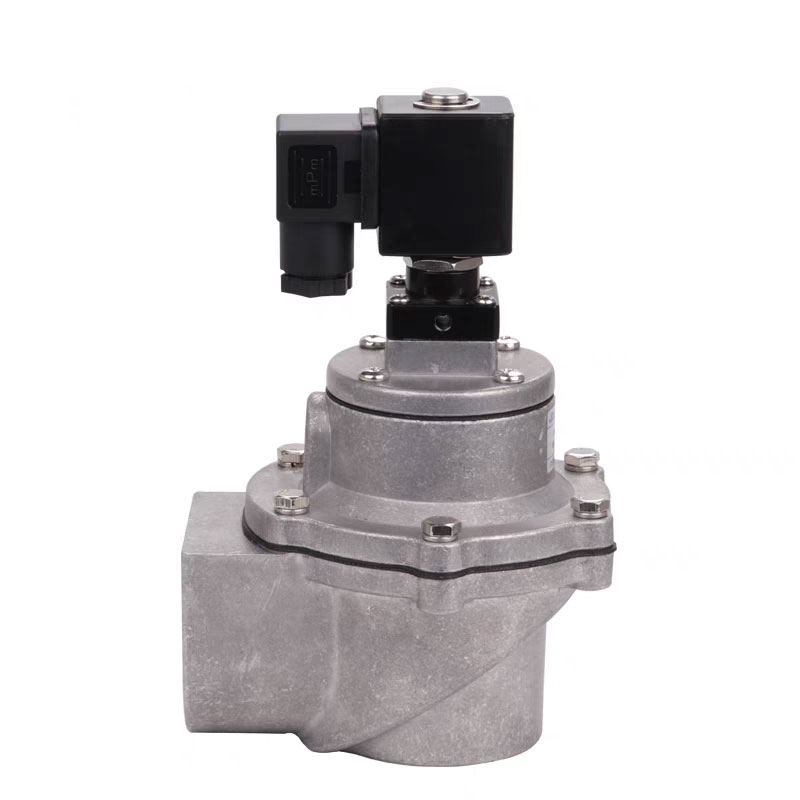

直角型阀门，其入口和出口之间的角度为 90°，适用于气囊和吹气管之间的安装连接，气流平稳，可提供满足要求的除烟气脉冲。

浸没式阀（又称嵌入式阀）直接安装在气囊上，具有循环特性。压力损失降低，适用于低压气源的工作环境。

Straight-through valve, the angle between its inlet and outlet is 180° (the inlet and outlet lines are the same straight line), its inlet is connected with the air storage cylinder, and its outlet is connected with the blowing pipe. The air flow is smooth, and it can provide the dust-cleaning air pulse that meets the requirements.

How the MD Pulse Control Valve Works

The MD pulse valve operates as an essential component in pulse bag filter cleaning systems. It acts as an air switch, controlling the flow of compressed air to clean dust from the filter bags. The diaphragm design separates the valve into two chambers. When compressed air enters the valve, it forces the diaphragm to seal the valve outlet, placing the valve in a "closed" state. When a signal is sent to the pulse controller, the valve quickly switches to an "open" state, allowing the compressed air to blow out dust, keeping the system clean and efficient.

The MD Pulse Control Valve has the following features:

1.The solenoid valve adopts the technology of isolation casing. fast response time. rapid direction change. wiring direction can be adjusted arbitrarily within 360 degrees. The product has various wiring forms and can be used together with pulse controller.

2.Diaphragm is made of imported special rubber stamping. high pressure resistance. long life.

3.The valve body. valve cover using die-casting technology. surface electrophoresis treatment. good anti-corrosion performance. beautiful appearance. compact structure. easy to install.

4.The internal flow path of the valve body is optimally designed. with large exhaust volume and rapid exhaust. The filter can be cleaned to blow away the objects or workpieces.

5.Diaphragm assembly adopts special sealing structure to ensure no leakage.

MD Pulse Valve Model Description

⑴Interface form	1-right-angle	2-right-angle with nut		3-embedded	4-right-through
⑵DN	20mm 25mm 40mm 50mm 62mm 76mm
⑶ Structure form	No mark - single diaphragm		S - double diaphragm (40mm or more)
⑷Voltage：	No mark - DC24V		special voltage custom-made
⑸Wiring	No mark - DIN		Other forms customised

MD Pulse Valve Technical Parameters:

Technical parameters and specifications	MD120	MD125	MD140S	MD150S	MD162S	MD376S
Working medium	Filtered compressed air
Voltage	DC24V AC110V AC220V
Interface thread	G3/4	G1	G1 1/2	G2	G2 1/2	G3
Working pressure range (MPa)	0.035～0.8
Commutation time(s)	≤30ms
Protection class	IP65
Insulation class	F
Ambient temperature (℃)	-20～60
Durability	1 million times or one year

MD脉冲控制阀
