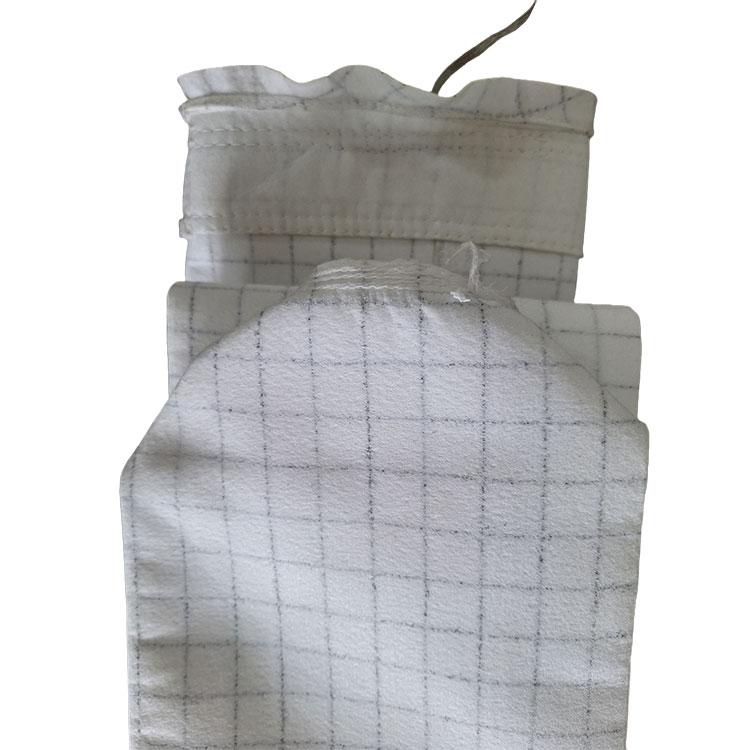

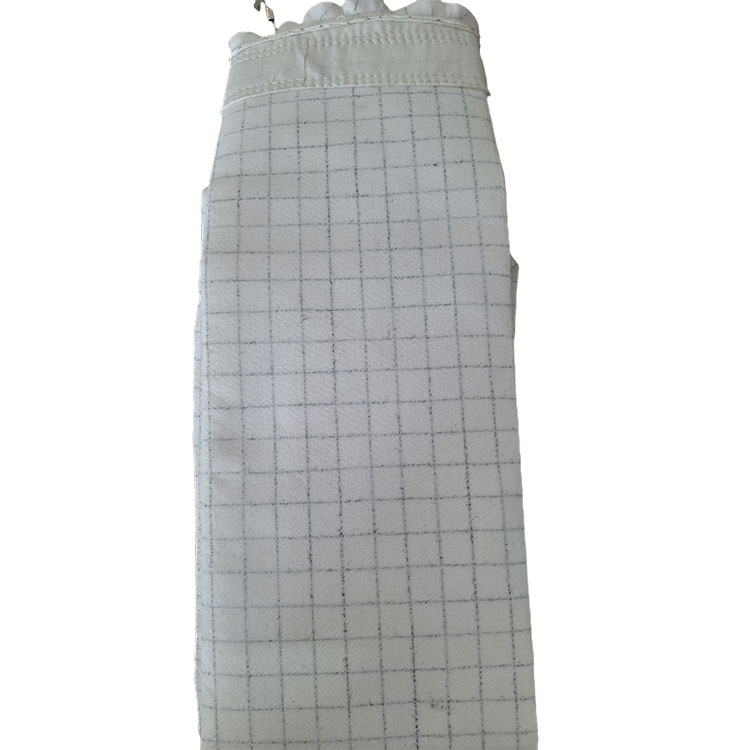

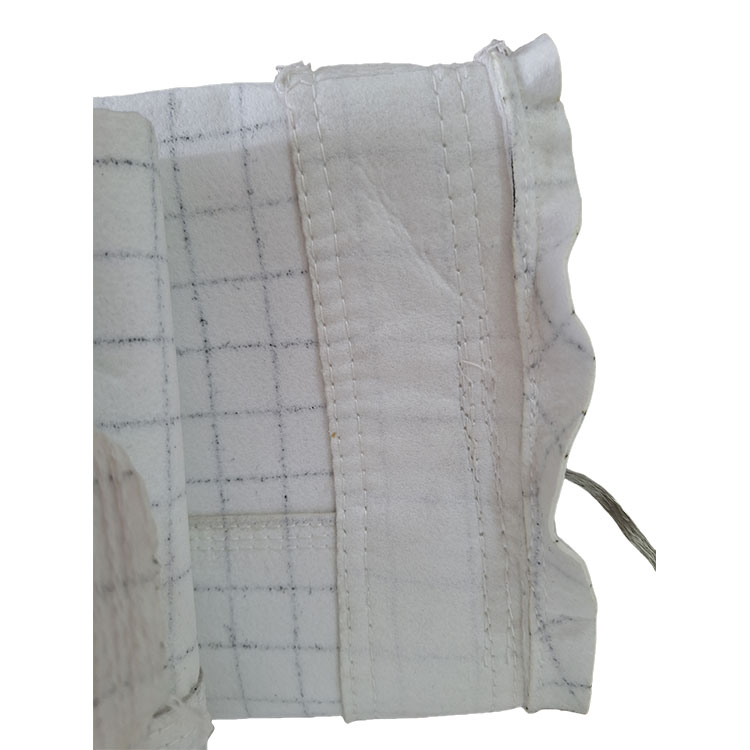

Antistatic Dust Filter Bag

Antistatic dust filter bag is the key component of the dust removal system, choose the right specification can improve the efficiency and safety of dust removal. Our filter bag is of good quality, easy to use, long service life.

Send Inquiry

Product Description

Antistatic dust filter bag is made from high-quality polyester needle felt with conductive fibers to effectively dissipate static electricity. It offers excellent abrasion resistance, high mechanical strength, good air permeability, and efficient dust release, making it ideal for explosion-proof dust collection systems.

Compared with striped designs, the square Antistatic dust filter bag provides a more uniform conductive surface for stable antistatic performance. The tightly bonded polyester fibers create fine, even micropores that ensure reliable filtration while maintaining low airflow resistance.

The polyester needle felt structure gives the Antistatic dust filter bag excellent durability, flexibility, and filtration efficiency. With optional PTFE membrane lamination, it delivers longer service life, easier cleaning, and cost-effective performance for low-temperature industrial dust collection.

Advantages include:

- Uniform fiber distribution and large void filter for good air permeability.

- Low gas emission concentration with high dust collection efficiency.

- Resistant to blockage and deformation, easy to clean, and long-lasting.

Product Specification

			Polyester/anti-static base fabric	Polyester/conductive fibre/filament base fabrics	Polyester/stainless steel fibre/filament base cloth
Gram Weight(g/m2)			500	500	500
Thickness(mm)			1.6	1.8	1.8
Air Permeability(m3/m2/min)			12	12	12
Tensile Strangth（N/5×20cm）	Warp	>800		>1000	>1000
Tensile Strangth（N/5×20cm）	Weft	>1300		>1300	>1300
Elongation(%)	Warp	<25		<35	<35
Elongation(%)	Weft	<55		<55	<55
Continuous Operating Temperature(℃)			≤130	≤130	≤130
Instantaneous working temperature（℃）			150	150	150
Acid Resistance			Excellent	Excellent	Excellent
Alkali Resistance			Good	Good	Good
Wear Resistance			Excellent	Excellent	Excellent
Hydrolytic stability			Good	Good	Good
Post-processing method			Burnishing and calendering/heat setting/Teflon/coating	Burnishing and calendering/heat setting/Teflon/coating	Burnishing and calendering/heat setting/Teflon/coating

Size:

There is no uniformly specified size standard for dust bag, and its size is determined according to the bag filter, the size of the flower plate hole and the length of the bag body.

Commonly used specifications are:

Calibre: ø120mm, ø125mm, ø130mm, ø150mm, ø160mm, ø180mm.

Bag length: 1m - 10m

Product Application

In the field of industrial dust removal, the dust has various properties, there are corresponding antistatic dust filter bags for different dusts, generally according to the temperature of the dust gas to choose the filter bag.

Room temperature or less than 130 ° C, commonly used polyester needle felt bags, 208, 729 filter bags.

Equal to or less than 150 ° C, the use of acrylic needle felt bag or fan of special medium temperature bag.

If it is greater than 150°C, use Flomax, PPS, Metas and so on.

If greater than 220 ° C, the choice of P84, PTFE, basalt, high silica and other filter bags.

When the water content is large and the dust concentration is high, waterproof and oil-proof dust bag (also known as anti-condensation filter media) or film-coated filter media dust bag is used.

If all kinds of coal dust, chemical dust, flour, aluminium powder, coke, carbon black, woodworking dust, etc., you need to use flame retardant antistatic dust filter bag.
